Hybrid Electric CNC Press Brake
CNC BENDING / SPES
Hybrid Electric technology.
A dual-servo oil-electric hybrid drive for controlled, on-demand sheet-metal bending.
- Drive architecture
- Dual-servo hybrid
- Control reference
- Delem DA-53T shown in the catalogue
- Catalogue reference
- 2024 edition / printed pages 01-02
01 / DRIVE TECHNOLOGY
Two servo drives. One coordinated bend.
The SPES platform uses a separate servo motor and servo pump for each cylinder. The two sides of the ram work together under CNC control, combining hydraulic forming force with on-demand motor operation.
Its closed hydraulic circuit is central to the machine architecture. The catalogue describes pressure, position and synchronization control, with motor rotation stopped during standby. Paired motor and oil-tank ratings are retained in the SPES technical table below.
SPES catalogue / pp. 01-02
Closed hydraulic circuit
A compact hydraulic architecture delivers pressure and position control.
On-demand operation
The drive supplies energy when required and stops motor rotation during standby.
Consider SPES when comparing a dual-servo hybrid drive with a conventional hydraulic platform. Select bending force and working length from the part requirements before choosing tooling and auxiliary equipment.
02 / MACHINE CONFIGURATION
Built around the bending process.
Frame strength, sheet positioning, tooling and compensation work together. The following assemblies appear in the shared SPES / SPS / SPC standard-configuration section of the 2024 catalogue.
Catalogue standard

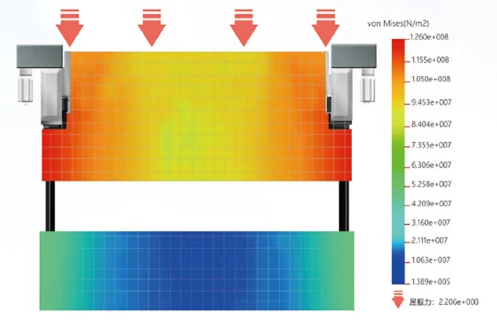

Reinforced frame & ram
The catalogue describes a strengthened frame and a thickened, widened ram to limit deformation under bending load. The frame provides the structural base for the tooling and positioning systems.
- Reinforced frame construction and widened ram
- Frame analysis illustration shown in the catalogue
Catalogue standard

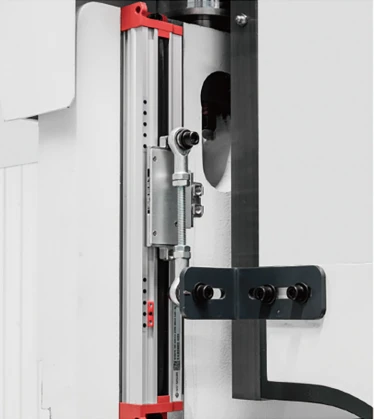

Throat-deformation compensation
A displacement sensor measures small deformation at the machine throat. This feedback supports compensation during bending rather than relying only on the unloaded frame position.
- C-type throat compensation arrangement
- GIVI displacement sensor identified in the catalogue
Catalogue standard

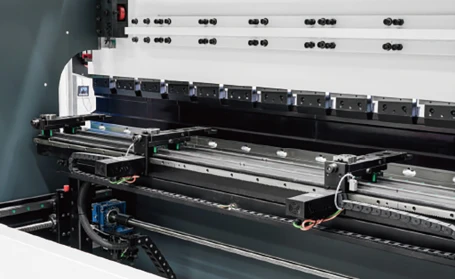

Guided backgauge positioning
Ball-screw transmission and linear guides position the sheet against the stop fingers. The crossbeam uses a double-guide arrangement, while multi-level fingers provide different contact positions for the workpiece.
- Ball screws and linear-guide crossbeam
- Multi-level stop fingers; axis package specified separately
Catalogue standard

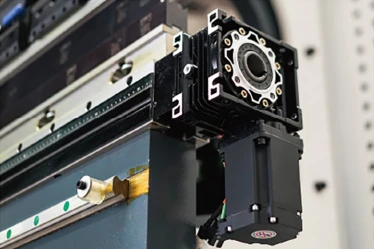

CNC mechanical crowning
The compensation setting is calculated and controlled through the CNC system. Mechanical crowning adjusts the worktable to help maintain a consistent bending angle along the working length.
- Closed-loop mechanical compensation
- Works alongside, not in place of, correct tooling setup
Catalogue standard

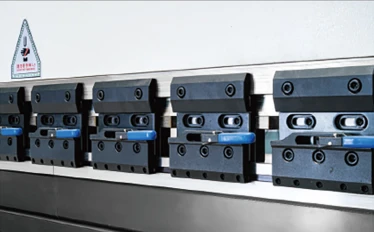

Quick upper-tool clamping
The upper-tool quick-clamp arrangement is intended to make installation and removal more convenient. It supports tool retention and positioning during setup without making hydraulic WILA clamping part of the base package.
- Quick-clamp upper-tool interface
- Hydraulic WILA systems are listed separately as options
Catalogue standard

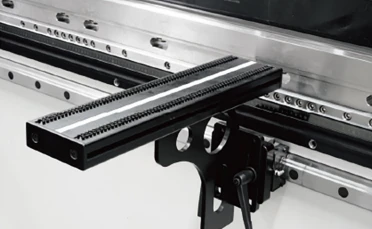

Adjustable front sheet supports
Front supports move along a linear guide and can be positioned for the workpiece. Rotation and height adjustment assist sheet support during setup and handling.
- Position, rotation and height adjustment
- CNC follower supports are a separate auxiliary option
Catalogue standard

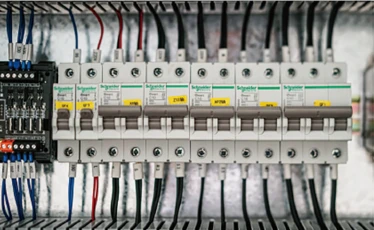

Electrical & guide components
The catalogue identifies Schneider electrical components and graphite self-lubricating copper plates. The plates provide a low-friction wear surface, while the electrical cabinet brings machine control components together.
- Schneider components identified in the catalogue
- Graphite self-lubricating guide plates
Catalogue standard
Press brake tooling & lower holders
Forged and quenched press brake tooling is described alongside the lower-tool interface. The catalogue lists a double-V / T quick-change lower clamp as standard, with other holder arrangements available for discussion.
- Punch and die profiles selected for the bend geometry
- Single-V mechanical or hydraulic and multi-V arrangements are optional
Catalogue standard equipment is a reference for the published range. Exact components, suppliers and the machine-specific supply list are confirmed in the quotation. The drive and hydraulic architecture remain series-specific.
03 / CNC CONTROL
From the drawing to the bend sequence.
The SPES machine illustration shows a Delem DA-53T controller. Other controllers in the catalogue are configuration choices, not automatically included equipment.
Shown on SPES: DA-53T
Delem DA-T range
The catalogue spans numerical touch operation, 2D graphical programming and 3D simulation across different Delem controllers.
- DA-53T: touch navigation, crowning control and tool library
- DA-58T: 2D touch graphical programming
- DA-66T: 2D programming and 3D product simulation; DA-69T: 2D/3D programming
Configuration choice
SNSIE S15 / S21
A one-page programming interface brings bending information together, with programmable bend speed and step settings.
- 15.6-inch S15 and 21.5-inch S21 touch interfaces
- Bending-data calculation and machine-control functions
- Automation interfaces described in the catalogue
Configuration choice
Cybelec controls
CybTouch and VT interfaces provide bending-program and calculation functions with graphical operation options suited to different requirements.
- CybTouch 12 PS: EasyBend and bending calculations
- CybTouch 15 PS: 2D programming and bend-step calculation
- VT-19: 19-inch touchscreen and graphical programming
Controller features differ by model and software version. Axis count, graphical functions and machine interfaces must match the selected equipment; listing a controller family does not establish compatibility with every machine or option.
04 / OPTIONS & AUTOMATION
Extend the machine around your workpiece.
Additional positioning, measurement, clamping and handling equipment can be discussed as part of your machine configuration. These items are separate from the catalogue standard assemblies above.
Optional equipment
Multi-axis backgauge packages
Additional independently positioned fingers and axes support more involved workpiece positioning. These are backgauge-axis counts, not a count of all machine axes.
- 4 axes: X, R, Z1, Z2
- 5 axes: X, R, Z1, Z2, X1
- 6 axes: X1, X2, R1, R2, Z1, Z2
Optional equipment

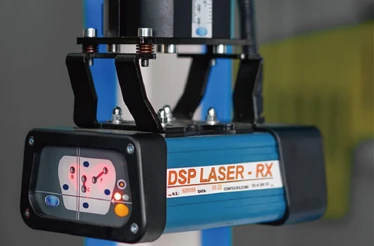

Laser safety protection
The catalogue illustrates a DSP laser protection device at the tooling area. The machine's complete safeguarding arrangement must be specified for the equipment and destination requirements.
- DSP laser device pictured in the catalogue
- Safety integration is confirmed as part of the machine package
Optional equipment

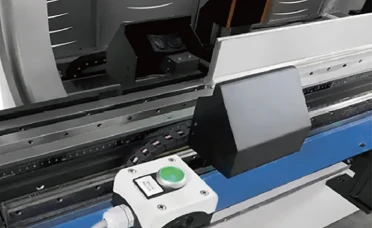

Laser angle measurement
Laser angle measurement provides information about the workpiece bend angle. It is a process-measurement option and serves a different purpose from the laser safety device.
- Workpiece angle measurement during bending
- Controller and machine integration require confirmation
Optional equipment

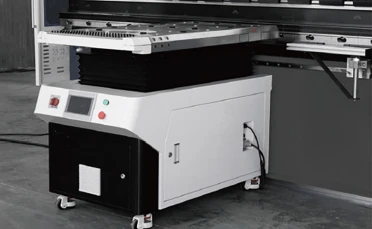

CNC follower supports
Unlike manually positioned front supports, a follower support tracks the workpiece as it turns during a bend. The CNC system calculates and controls the following angle and speed.
- CNC-controlled following motion
- Lateral positioning along the support guide
Optional equipment

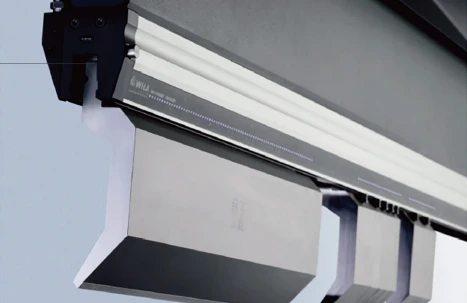

WILA hydraulic upper clamping
The WILA upper-tool system uses hydraulic clamping with electrically controlled clamping and release. It is a tooling-interface option for tool changes, not the same assembly as the catalogue quick clamp.
- Hydraulic upper-tool clamping
- Tool profile and holder compatibility must be checked
Optional equipment

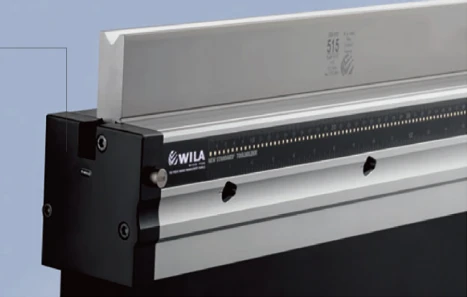

WILA hydraulic lower holders
The illustrated lower-tool holder uses hydraulic clamping with electrically controlled release. Its suitability depends on the selected die interface and machine configuration.
- Hydraulic lower-die retention
- Separate from the standard double-V / T lower clamp
Application-specific

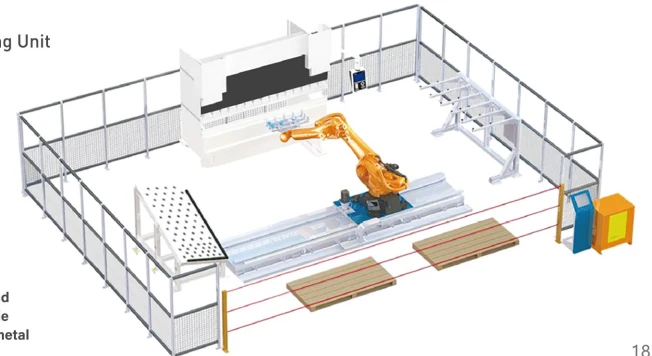

Robotic bending cell
The catalogue shows a flexible bending cell combining the press brake, robot and workpiece-handling areas. The layout is a reference concept, not a fixed package or a documented customer installation.
- Cell layout developed around the workpiece and production sequence
- Robot, handling, guarding and machine interfaces defined together
A configuration starts with the part.
Share your material, thickness, maximum bend length, drawings and production sequence to discuss a compatible machine package.
CONFIGURATION QUESTIONS
Before selecting your equipment.
Which controller comes with this series?
The SPES machine illustration shows a Delem DA-53T controller. Other controllers in the catalogue are configuration choices, not automatically included equipment. The supplied controller is recorded in the machine quotation.
Are the listed options included as standard?
No. The standard assemblies follow the catalogue section on printed pages 07-10. Multi-axis backgauges, auxiliary measurement, hydraulic WILA holders and automation are described separately on pages 16-18. Final availability and compatibility depend on the machine configuration.
Is a four-axis backgauge the same as 4+1-axis machine control?
No. Backgauge packages count the positioning axes in that assembly. Machine-axis descriptions also include ram and compensation control. For example, the SPC catalogue lists Y1, Y2, X, R and V as 4+1-axis control.
What is needed to select tooling and handling equipment?
Provide the part drawing, material and thickness, bend lengths, required geometry and production sequence. These guide discussion of punch and die profiles, backgauge access and sheet support. The catalogue tool-installation diagrams are available in the technical resources.
Tool installation referenceTECHNICAL PARAMETERS
Complete catalogue specifications.
| Model | Nominal pressure (kN) | Bending length (mm) | Upright distance (mm) | Throat depth (mm) | Cylinder stroke (mm) | Opening height (mm) | Die setting height (mm) | Main motor power (kW) | Oil tank volume (L) | Approaching speed (mm/s) | Working speed (mm/s) | Returning speed (mm/s) | Machine length (mm) | Machine width (mm) | Machine height (mm) | Weight (kg) | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPES40-1600 | 400 | 1,600 | 1,200 | 300 | 150 | 450 | 545 | 3.7 x 2 | 50 x 2 | 300 | 15 | 150 | 2,200 | 1,450 | 2,155 | 4,300 | Inquire |
| SPES70-1600 | 700 | 1,600 | 1,200 | 350 | 170 | 460 | 555 | 3.7 x 2 | 50 x 2 | 300 | 15 | 150 | 2,200 | 1,450 | 2,155 | 4,500 | Inquire |
| SPES70-2500 | 700 | 2,500 | 2,000 | 350 | 170 | 460 | 555 | 3.7 x 2 | 50 x 2 | 300 | 15 | 150 | 3,220 | 1,780 | 2,650 | 5,500 | Inquire |
| SPES110-2500 | 1,100 | 2,500 | 2,000 | 400 | 200 | 490 | 585 | 5.5 x 2 | 70 x 2 | 280 | 13 | 150 | 3,240 | 1,780 | 2,680 | 7,000 | Inquire |
| SPES110-3200 | 1,100 | 3,200 | 2,700 | 400 | 200 | 490 | 585 | 5.5 x 2 | 70 x 2 | 280 | 13 | 150 | 4,030 | 1,780 | 2,680 | 8,000 | Inquire |
| SPES110-4100 | 1,100 | 4,100 | 3,300 | 400 | 200 | 490 | 585 | 5.5 x 2 | 70 x 2 | 280 | 13 | 150 | 4,830 | 1,780 | 2,780 | 10,000 | Inquire |
| SPES130-3200 | 1,300 | 3,200 | 2,700 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 280 | 15 | 150 | 4,030 | 1,790 | 2,750 | 8,300 | Inquire |
| SPES130-4100 | 1,300 | 4,100 | 2,700 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 280 | 15 | 150 | 4,830 | 1,790 | 2,850 | 11,300 | Inquire |
| SPES130-5000 | 1,300 | 5,000 | 4,100 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 280 | 15 | 150 | 5,830 | 1,790 | 3,100 | 14,000 | Inquire |
| SPES130-6000 | 1,300 | 6,000 | 4,800 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 280 | 15 | 150 | 6,830 | 1,790 | 3,200 | 16,000 | Inquire |
| SPES170-3200 | 1,700 | 3,200 | 2,700 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 250 | 13 | 150 | 4,050 | 1,800 | 2,730 | 10,100 | Inquire |
| SPES170-4100 | 1,700 | 4,100 | 3,400 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 250 | 13 | 150 | 4,700 | 1,800 | 2,830 | 12,100 | Inquire |
| SPES170-5000 | 1,700 | 5,000 | 4,100 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 250 | 13 | 150 | 5,700 | 1,800 | 3,080 | 15,000 | Inquire |
| SPES170-6000 | 1,700 | 6,000 | 5,000 | 400 | 200 | 490 | 585 | 7.5 x 2 | 90 x 2 | 250 | 13 | 150 | 6,700 | 1,800 | 3,180 | 18,000 | Inquire |
| SPES220-3200 | 2,200 | 3,200 | 2,700 | 400 | 200 | 490 | 585 | 8.5 x 2 | 150 x 2 | 200 | 13 | 150 | 4,020 | 1,850 | 2,850 | 12,000 | Inquire |
| SPES220-4100 | 2,200 | 4,100 | 3,300 | 400 | 200 | 490 | 585 | 8.5 x 2 | 150 x 2 | 200 | 13 | 150 | 4,820 | 1,850 | 3,100 | 13,900 | Inquire |
| SPES220-5000 | 2,200 | 5,000 | 4,100 | 400 | 200 | 490 | 585 | 8.5 x 2 | 150 x 2 | 200 | 13 | 150 | 5,820 | 1,850 | 3,250 | 18,200 | Inquire |
| SPES220-6000 | 2,200 | 6,000 | 5,000 | 400 | 200 | 490 | 585 | 8.5 x 2 | 150 x 2 | 200 | 13 | 150 | 6,820 | 1,850 | 3,350 | 21,000 | Inquire |
| SPES250-3200 | 2,500 | 3,200 | 2,700 | 450 | 250 | 540 | 635 | 13 x 2 | 200 x 2 | 160 | 15 | 140 | 4,050 | 1,860 | 3,000 | 14,000 | Inquire |
| SPES250-4100 | 2,500 | 4,100 | 3,300 | 450 | 250 | 540 | 635 | 13 x 2 | 200 x 2 | 160 | 15 | 140 | 4,850 | 1,860 | 3,100 | 16,000 | Inquire |
| SPES250-5000 | 2,500 | 5,000 | 3,800 | 450 | 250 | 540 | 635 | 13 x 2 | 200 x 2 | 160 | 15 | 140 | 5,850 | 1,860 | 3,250 | 21,000 | Inquire |
| SPES250-6000 | 2,500 | 6,000 | 5,000 | 450 | 250 | 520 | 615 | 13 x 2 | 200 x 2 | 160 | 15 | 140 | 6,850 | 1,860 | 3,350 | 24,000 | Inquire |
| SPES300-3200 | 3,000 | 3,200 | 2,700 | 450 | 250 | 520 | 615 | 13 x 2 | 200 x 2 | 160 | 13 | 140 | 4,600 | 2,260 | 3,400 | 17,700 | Inquire |
| SPES300-4100 | 3,000 | 4,100 | 3,300 | 450 | 250 | 520 | 615 | 13 x 2 | 200 x 2 | 160 | 13 | 140 | 5,400 | 2,260 | 3,500 | 20,300 | Inquire |
| SPES300-5000 | 3,000 | 5,000 | 3,800 | 500 | 250 | 520 | 615 | 13 x 2 | 200 x 2 | 160 | 13 | 140 | 6,430 | 2,260 | 3,680 | 26,100 | Inquire |
| SPES300-6000 | 3,000 | 6,000 | 5,000 | 500 | 250 | 520 | 615 | 13 x 2 | 200 x 2 | 160 | 13 | 140 | 7,430 | 2,260 | 3,850 | 30,400 | Inquire |

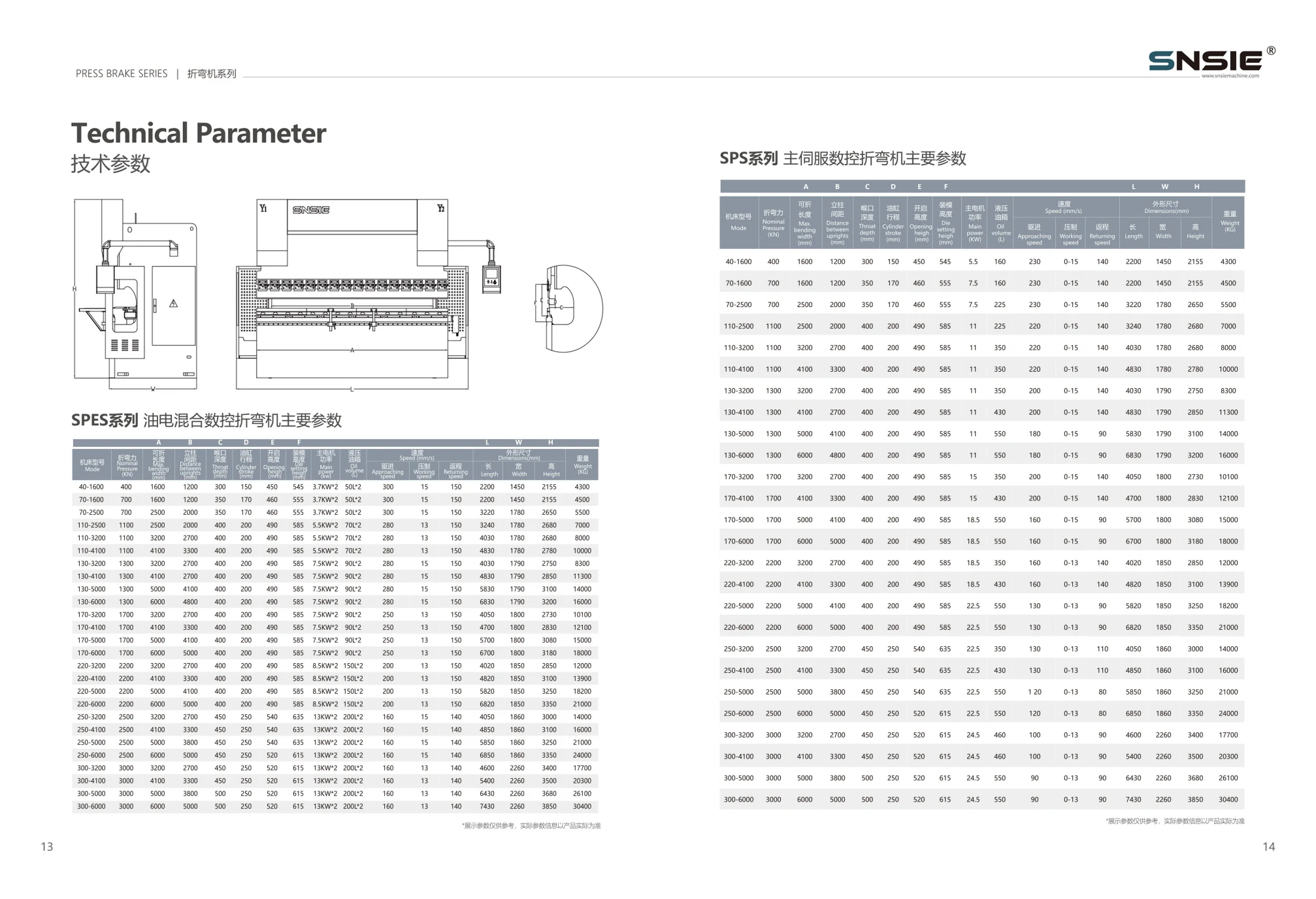

All 26 SPES models from the 2024 catalogue, PDF page 9 (printed page 13). Pressure is listed in kN. These values are catalogue references; final specifications are confirmed in the machine quotation. Motor power and oil tank entries marked x 2 describe two units at the stated individual rating, not a single combined rating.
